TITAN II

TITAN II

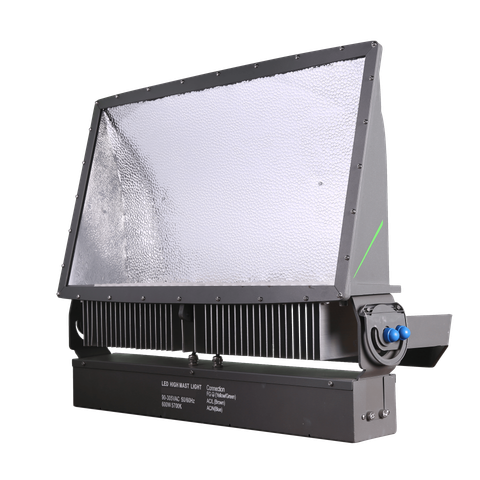

High mast LED floodlight

Features & Benefits

• Efficacy of 130lm/w
• LED replacement for 750-1500w traditional metal halide floods
• Indirect lighting technology to reduce glare
• Asymmetric distribution
• Available colour temperatures 2700k-7000k

Applications

• Sports fields
• Airports
• High ways
• Exterior car parks
• Railyards
• Shipping docks
• Outdoor swimming pools

Example Installations

TITAN  fittings are used in the following installations:

General

  • Size 715mm x 710mm x 170mm
  • Black finish
  • Aluminium body with glass glazing
  • Column or wall mounted
  • Weight 28.5kg

Optical

  • Lumen output of 39,000lm - 104,000lm
  • CCT 2700k - 7000k
  • CRI >80Ra
  • Asymmetric beam angle

Electrical

  • Wattage 300w - 800w
  • Up to 130lm/w
  • Voltage 90-30V
  • Electrical class III
  • Power factor >0.9

Durability

  • Lifetime of 50,000 hours
  • Operating temp. -40°C to 70°C
  • IP65
  • Surge protection 10KV
