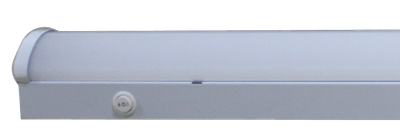

DEMETER II

LED surface mounted linear with switchable CCT

Features & Benefits

• Intelligent press spring clips for simple
installation
• Up to 130 lm/w
• Suitable for BESA mounting
• Press fit terminals, loop in loop out
• Choice of single or twin colour CCT controlled via switch

Applications

• Commercial/offices
• Corridor
• Education
• Healthcare/social housing
• Hotel/leisure
• Stairwell
• Industrial/manufacturing

General

  • 600mm, 1200mm, 1500mm, 1800mm length
  • Powder coated white finish
  • Cold rolled steel housing with alumnium heat sink and polycarbonate diffuser

Optical

  • Lumens 2600lm - 9750lm
  • CCT 2700k - 6500k
  • CRI >80Ra
  • Beam Angle of 110°

Electrical

  • Wattage 20w - 75w
  • Efficacy up to 130lm/w
  • Voltage 180-240V
  • PF >0.9

Durability

  • Operating Temp. -20°C to 40°C
  • IP20
