BIA

BIA

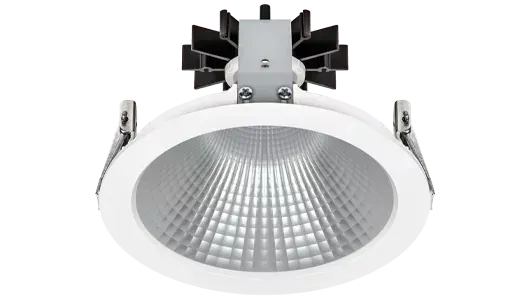

High performance LED downlight with satin etched refelctor

Features & Benefits

• Die-cast twist and lock bezel with interchangeable accessories
• Optimised thermal management system
• IP54 and IP65 bezel options
• DALI and Bluetooth control
• Self-test EM conversion
• Life up to >60,000 hours (L70/B10)

Applications

• Offices
• Retail
• WC Areas
• Corridors
• Receptions

Example Installations

BIA fittings are used in the following installations:

General

  • Size of 195mm diameter x 132mm depth
  • Alumnium bezel with toughened glass glazing
  • Recess mounted
  • Weight of 1.8kg

Optical

  • Output of up to 4550lm
  • 3000k or 4000k CCT
  • CRI >80Ra
  • LOR of 87%
  • 40° specular, 50° multi-faceted or 60° satin etched reflector (standard)

Electrical

  • Maximum wattage of 48W
  • Efficacy of up to 99lm/w
  • Voltage 220-240V
  • Mains frequency 50-60Hz
  • SDCM 3

Durability

  • Lifespan 60000 hours (L70/B10)
  • Protection IP20 (IP54 & IP65 bezel options)
  • Operating temp. -25°C to 35°C
