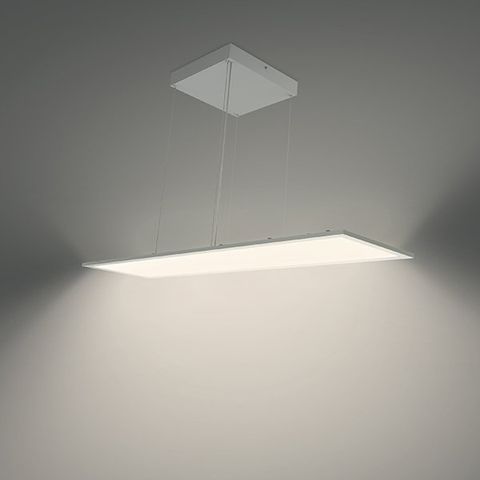

SLICA PRO SUSPENDED UP/DOWN

SLICA PRO UP/DOWN

Suspended LED panel with up and down light distribution

Features & Benefits

• Upward and downward light distribution (70% down, 30% up)
• 3000k, 4000k, 5000k & 5700k CCT
• Wide angle of deflection with even light distribution
• Maximum 72w input
• Control options include MWS, PIR, or DALI
• Emergency version
• CRI >80
• Available in 3 sizes, 600 x 600mm, 1200 x 300mm and 1200mm x 600mm

Applications

• Offices
• Hospitals
• Schools

Example Installations

SLICA UP/DOWN fittings are used in the following installations:

General

  • Size 600mm x 600mm, 1200mm x 300mm and 1200mm x 600mm
  • Powder coated silver frame
  • Aluminium body with high quality acrylic and polycarbonate diffuser
  • Suspended mounted

Optical

  • Lumen output 3100lm - 4770lm
  • 3000k, 4000k, 5000k & 5700k
  • >80Ra
  • UGR of less than 19
  • Beam angle of 270° (up/down distribution)
  • SDCM <3

Electrical

  • Input power of 45W - 72W
  • Up to 69lm/w
  • 200-240V
  • PF >0.9

Durability

  • Lifetime of >40,000 hours
  • Operating temp. -20°C to 40°C
  • IP40
