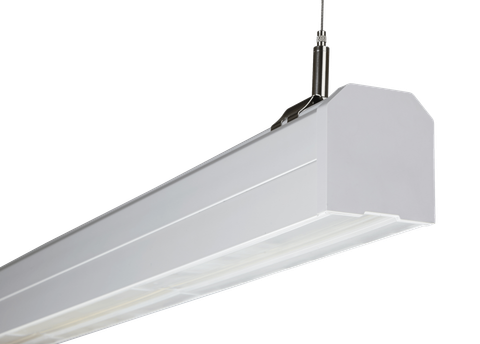

THETIS

Linear trunking system

Features & Benefits

• High efficacy of up to 170 lm/w
• Variety of beam patterns for different applications
• Optimal glare control
• Seamless connection and no light leakage
• Standalone type and continuous row optional
• Compact design and streamlined appearance
• Modular design and easy installation

Applications

• Supermarket and retail
• Warehouse
• Workshop

General

  • Lengths of 600mm, 1500mm & 3000mm
  • Powder coated white or silver
  • White, silver or black finish
  • Extruded aluminum profile with PMMA cover
  • Suspended mounting

Optical

  • Lumen output of 3000lm - 21,000lm
  • CCT 3000k, 4000k, 5000k
  • CRI >80Ra (90 optional)
  • UGR <16
  • SDCM <4
  • Beam angles 25°, 60°, 90°, double asymmetric & asymmetric

Electrical

  • Input power of 18w - 127w
  • Efficacy 170lm/w
  • Voltage 200-240V
  • THD <15%

Durability

  • Lifespan 70,000h (L70, Tc=25°C)
  • Operating temp. -20°C to 40°C
  • IP20
  • IK05
