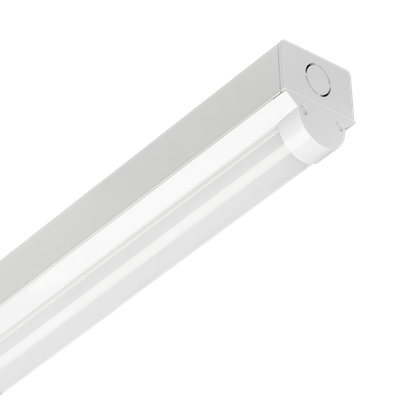

HERMES

Linear LED

Features & Benefits

• ECA compliant 124lm/tcw
• BESA and conuit entry points
• Opal polycarbonate diffuser
• Lumen output of 3300lm
• Control options include SwitchDIM or DALI
• Available as emergency version

Applications

• Internal car parks
• Stairwell
• Classroom/School
• Corridor
• Storage Room
• Other industrial areas

General

  • Size 1200mm x 69mm x 55mm
  • White powder coated finish
  • Aluminium body complete with opal polycarbonate diffuser
  • Weight 1kg

Optical

  • Lumen output of 3300lm
  • CCT of 4000k
  • CRI >80Ra
  • UGR <27
  • SDCM <4
  • Beam Angle of 110°

Electrical

  • Input power of 26.5W
  • Efficacy up to 124lm/w
  • Voltage 220-240V
  • Mains frequesncy 50-60Hz

Durability

  • Lifespan in excess of 50,000 hours (L70/B50)
  • Operating Temp. -15°C to 35°C
  • IP44 (front) IP20 (rear)
