CASTOR

LED downlight with a choice of three mounting types

Features & Benefits

• Two luminaire sizes, Ø160mm & Ø220mm
• 3 mounting types
• Efficacy of up to 137 lm/w
• High lumen output of up to 4450 lumens
• Choice of 4 beam angles
• 3 colour options of black, white or grey
• 3000k or 4000k
• Ra90+ optional
• 1-10V or DALI dimming control

Applications

• Retail
• Hospitality
• Offices

General

  • Ø160mm x 180mm depth
  • Ø220mm x 220mm depth
  • Die-cast aluminium body complete with facet anodised aluminium reflector
  • Finished in a choice of black, grey or white

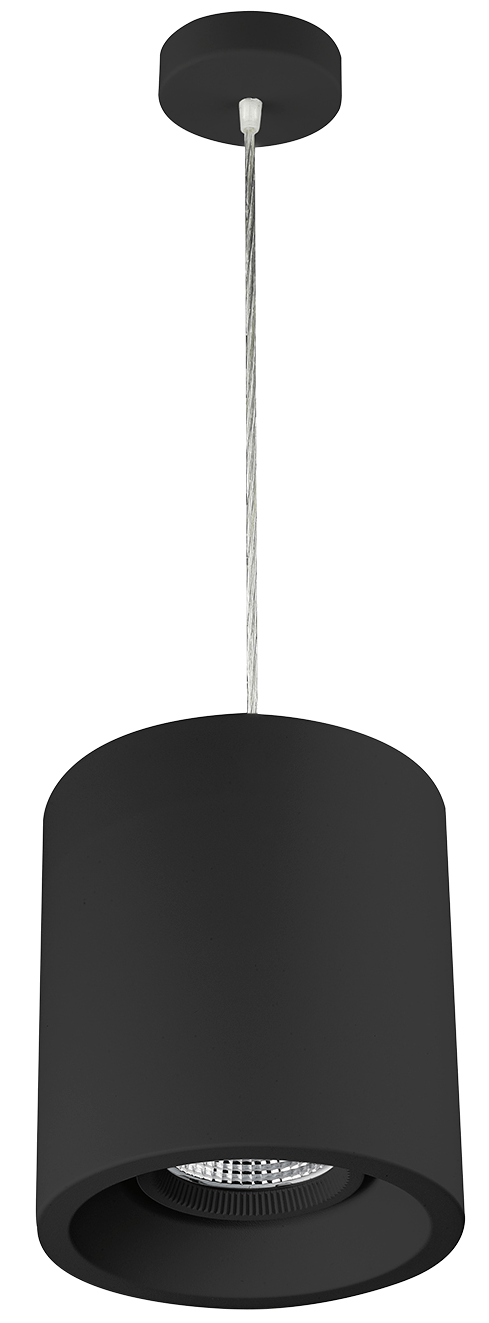

  • Pendant, surface or track mounted
  • Weight of 1.2kg (Ø160mm) 1.66kg (Ø220mm)

Optical

  • Lumen output of 1050lm - 4450lm
  • 3000k, 4000k, dim to warm or tunable white
  • CRI >80Ra (90 optional)
  • SDCM <3
  • Beam angle of 15°, 30°, 45° & 60°

Electrical

  • Input power of 9.5W - 38.5W
  • Up to 137lm/w
  • 220V - 240V / 50-60Hz

Durability

  • Lifespan of 50,000 hours (L80/B10)
  • Maximum ambient temp. 35°C
  • IP20
