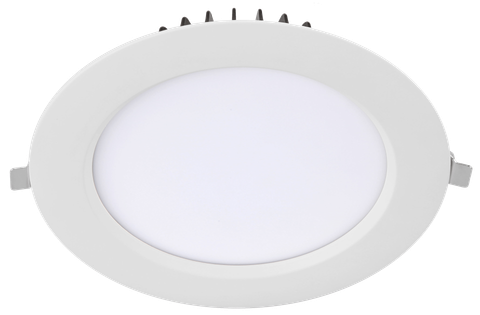

BIOS

Shallow body downlight

Features & Benefits

•    Efficacy of between 100-108lm/w
•    DALI or 0-10V dimmable, emergency (remote) option also available
•    Available in 15W, 24W & 37W variants
•    High lumen output of up to 4000lm
•    Shallow body of 65mm

Applications

• Offices
• Retail
• Circulation areas
• Receptions
• Toilets

General

  • Diameter of 148mm, 195mm or 230mm
  • Aluminium body and heatsink
  • Powder coated white bezel
  • Recess mounted
  • Weight 0.25kg (15W) 0.43kg (24W) 0.58kg (37W)

Optical

  • Output of up to 4000lm
  • 3000k, 4000k, 5000k & 6000k CCT
  • CRI >82Ra
  • UGR < 19
  • 110° beam angle
  • LOR of 83%

Electrical

  • Wattages of 15W, 24W & 37W
  • Efficacy of up to 108lm/w
  • Voltage 220-240V
  • THD <20%
  • Class II protection

Durability

  • Lifespan >50,000 hours (L80/B10 Ta=25°C)
  • Protection IP20/IP44
  • Operating temp. -20°C to 50°C
