ECO HIGHBAY

Industrial LED lighting unit

Features & Benefits

• Aluminium body finished in RAL7016 anthracite grey as standard
• Maximum output of 20,000 lumens
• Input power of 180w
• Fitted with acrylic lens to provide a choice of beam anlges (90° as standard)
• Available in 3000k or 4000k
• Up to 111lm/w
• Control options include PIR, motion, daylight sensor and dimming capabilities
• Wireless connectivity and automatic feedback as additional options

Applications

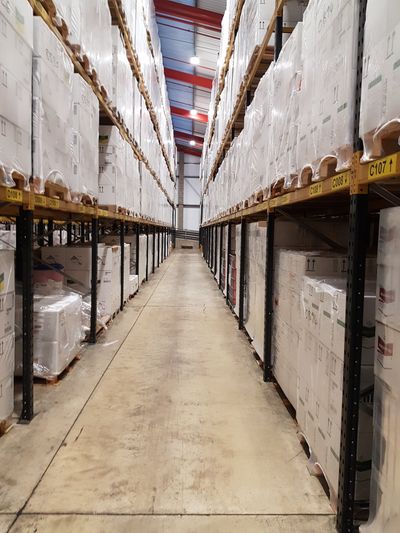

• Warehouses
• Workshops
• Other industrial applications

General

  • Size 350mm x 350mm x 100mm (180w version)
  • Finished RAL7016 anthracite grey as standard
  • Aluminium body with polycarbonate lenses
  • Suspended or surface mounted

Optical

  • Maximum lumen output of 20,000lm
  • CCT 3000k & 4000k
  • CRI >80Ra
  • Beam Angle of 90° or 60°

Electrical

  • Wattage 45w - 180w
  • Efficacy up to 111lm/w
  • Voltage 100-277V
  • SDCM 3

Durability

  • Lifespan 50,000 hours (L70)
  • Operating Temp. -25°C to 35°C
  • IP20
