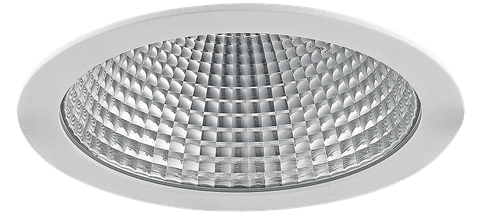

ERIS

Shallow LED downlight

Features & Benefits

• High performance downlght with shallow body
• Available CCT from 2700k to 5700k
• CRI80 or CRI90
• Choice of white, grey or black bezel
• DALI or 1-10V control
• Emergency variant
• Option of dim to warm or tunable white

Applications

• Offices
• Retail
• Corridors

General

  • 200mm diameter x 120mm depth
  • Cut out 190mm diameter
  • Die cast aluminium body
  • Recess mounted
  • 1.2kg

Optical

  • Lumen output of 1100lm up to 4700lm
  • CCT of 2700k, 3000k, 4000k & 5700k
  • CRI >80Ra/90Ra
  • 50° beam angle
  • SDCM 3

Electrical

  • 9.5W to 33W
  • Up to 143lm/w
  • 220V - 240V / 50-60Hz

Durability

  • Lifespan of 50,000 hours (L80/B10)
  • IP20 (optional IP40 glass)
  • Maximum ambient temp. 35°C
