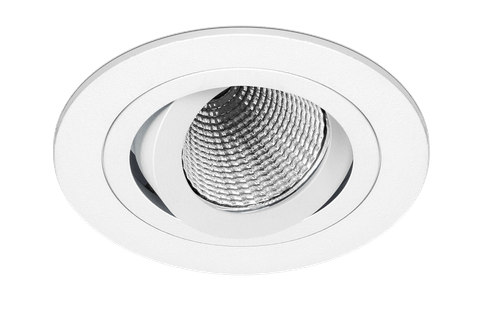

NOMOS

Compact adjustable LED gimbal

Features & Benefits

• Minimal LED downlight
• Complete with die-cast bezel
• Choice of style options
• Minimum IP44 rated
• DALI dimming and emergency variants
• CRI >80
• Available in SwitchDIM, DALI and emergency version

Applications

• Kitchens
• WC Areas
• Corridors
• Receptions
• Wall washing

General

  • Size 70mm - 80mm Ø bezel, 74mm - 98mm depth
  • White RAL7016 as standard
  • Die-cast bezel with toughened glass glazing
  • Recess mounted
  • Weight 0.3kg

Optical

  • Lumen output 750lm (3000k) 775lm (4000k)
  • CRI >80Ra
  • Medium beam angle
  • SDCM >3

Electrical

  • Input power of 8W
  • Efficacy of up to 98m/w
  • Voltage 220-240V

Durability

  • Lifespan 50000 hours (L70/F50)
  • Protection max. IP54 (front) IP20 (rear)
