ERSA

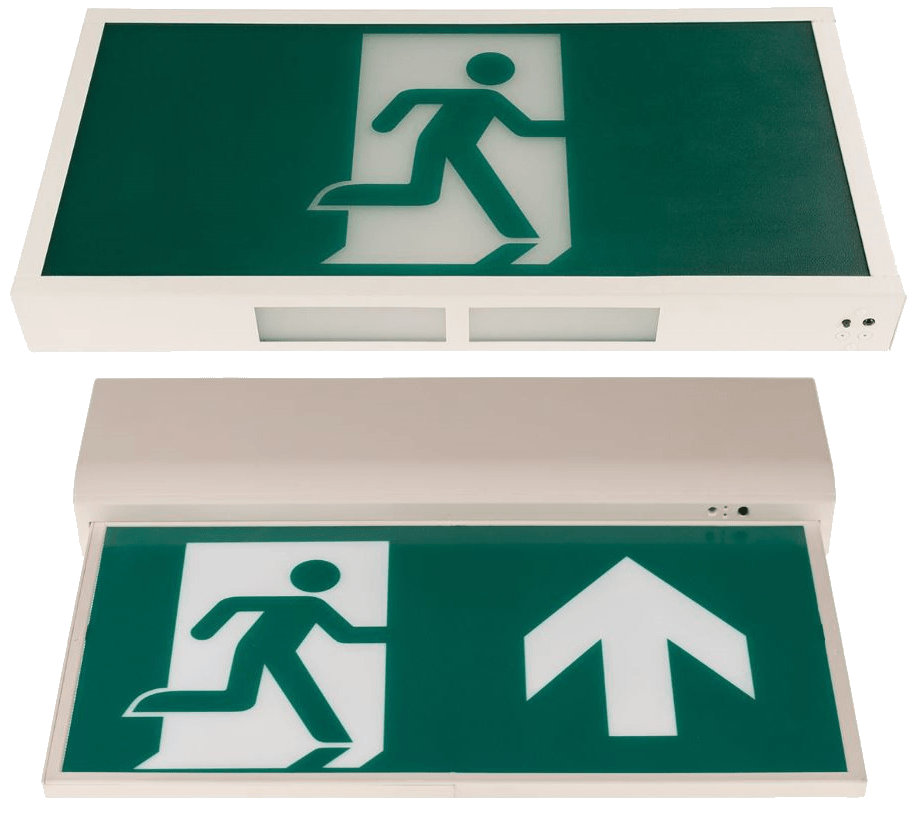

Emergency exit sign

Features & Benefits

• Self-contained emergency LED exit sign
• Choice of box or blade variant
• Viewing distance of 34m (box) and 30m (blade)
• Constant emergency light for 3hrs
• Complete with integrated 3.6V 2500mAh lithium battery
• Test button integrated
• Fast battery re-charge (8hrs)*

* First battery charge takes up to 16 hours


Applications

• Interior/exterior applications requiring emergency lighting

General

  • 393mm x 196mm x 41mm (box) 341mm x 247mm (blade)
  • Matt white finish
  • Steel housing with polycarbonate diffuser (box), polycarbonate luminaire housing with PMMA light guide plate (blade)
  • Wall mounting (box), ceiling or recessed (blade)
  • 1.08kg (box) 1kg (blade)

Optical

  • 24pcs of LED's
  • CCT of 5700k
  • CRI >80
  • Viewing distances of 34m (box) 30m (blade)

Electrical

  • Wattage 5W (Max) 3W maintained, 3W (Max) 0.5W (standby) non-maintained
  • Input voltage/frequency 220-240V AC 50Hz
  • Discharge duration of 3hrs
  • Class I & II insulation (box & blade)

Durability

  • LED lifetime 50,000hrs (L70)
  • Operating temp. 0°C to 40°C
  • IP20
  • IK07
