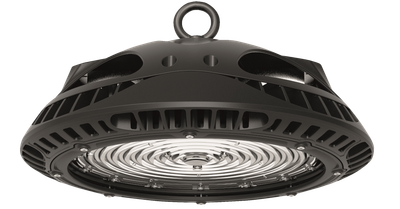

PERSEUS II

LED High bay

Features & Benefits

• Attractive and well-engineered aluminium body
• Provides up to 26,000 lumens,
• Efficacy of 150lm/w maximum
• IK08 or IK10 impact resistance
• Emergency function available (100W - 200W variants only)
• 1-10V and DALI dimmable
• Optional microwave or daylight sensor

Applications

•    Warehouse
•    Loading bays
•    Internal car parks
•    Other industrial areas

General

  • 360mm diameter x 139mm depth
  • Powder coated black
  • Aluminium housing and heat sink with polycarbonate or tempered glass lens
  • Suspended mounted as standard
  • 5-4kg - 5.9kg standard version
  • 6.2kg - 6.5kg emergency version

Optical

  • Lumens 13000lm - 36000lm
  • CCT of 4000k
  • CRI >70Ra
  • Standard 60° or 120° beam (optional reflectors)

Electrical

  • Wattage 100W - 240W
  • Efficacy up to 150lm/w
  • Voltage 100-240V
  • Frequency 50/60Hz
  • <65A Inrush current
  • THD <20%
  • Class I protection

Durability

  • Operating temp. -30°C to 50°C
  • IP65
  • IK08 (tempered glass lens
  • IK10 (polycarbonate lens)
