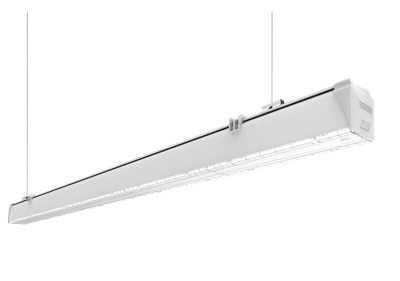

ASTERIUS

Linear trunking system

Features & Benefits

• Up to 130lm/w
• Range of beam angles to suit variable applications
• Pre-wired trunking system aids in reducing installation time
• Stylish design with minimal size
• Seamless connection and no light leakage
• Full range of light outputs and colour temperatures for different lighting applications
• Modular design
• UGR <19
• Controls include 1-10V & DALI
• Emergency variant

Applications

• Supermarket
• Car Showrooms
• Retail
• Warehouse

Example Installations

ASTERIUS fittings are used in the following installations:

General

  • Length 577mm, 1149mm, 1435mm
  • Powder coated white, silver or black
  • Aluminium body with polycarbonate diffuser

Optical

  • Lumens 2600lm - 9500lm
  • CCT 3000k, 4000k & 5000k
  • CRI >80Ra (90 optional)
  • UGR<19
  • Beam angles of 30°, 60°, 90° & 2 x 24°

Electrical

  • Wattage 20w - 75w
  • Efficacy up to 170lm/w
  • Voltage 120-277V
  • THD <15%

Durability

  • Lifespan 100,000 hours (L70, B50 Tc = 25°C)
  • Operating Temp. -20°C ~ 50°C
  • IP20
  • IK05
