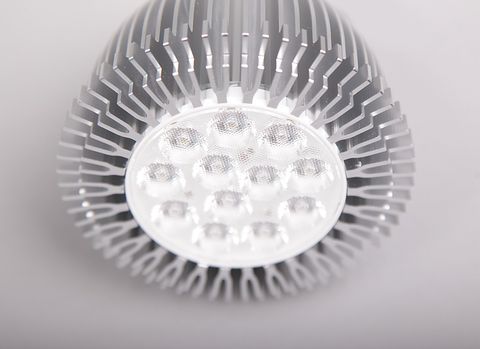

ICARUS

LED Light Engine

Features & Benefits

• High output light engine using CREE XPG2 and XML2 LED's with T4 Flux or above
• Manufactured in high grade aluminium to ensure best heat removal properties.
• Supplied with electronic driver.
• Expected lifetime of 100,000 hours.
• CRI 84 (90 on request)
• Dimming available via DALI, DMX or DSI
• Ideal replacement for 70w/50w CDM-T

Applications

• Offices
• Retail
• WC Areas
• Corridors
• Receptions

General

  • 110.5mm diamter x 83.5mm depth
  • Aluminium finish
  • Suspended, surface or retro-fitted into existing housing
  • 0.46kg

Optical

  • Lumen output of 3100lm or 5000lm
  • CCT of 4000k as standard
  • CRI >84 Ra (90 optional)
  • Beam angle of 28° or 40°

Electrical

  • Up to 46w input power
  • 109lm/w
  • 42v forward voltage

Durability

  • Lifespan of 100,000 hours
  • IP20
  • Operating temp. -20°C to 35°C
