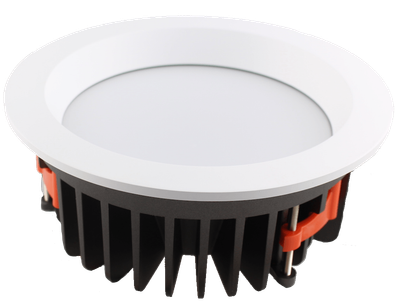

COMFORT DOWNLIGHT

Recess mounted downlight with circadian capabilities

Features & Benefits

• Choice of 4 bezel sizes
• 120° beam angle
• White, silver or black bezel finish
• Optional drop bowl glazing
• Maximum lumen output of up to 3700lm
• Ability to provide full circadian lighting control via the Ambx SmartCore system

Applications

• Care Homes
• Hospitals
• Areas for assisted living

Example Installations

COMFORT DOWNLIGHT fittings are used in the following installations:

General

  • Ø110mm x 53mm, Ø145mm x 69mm, Ø190mm x 99mm & Ø230mm x 99mm
  • Matt white, silver or black bezel finish
  • Aluminium body
  • Flat glass or domed bowl glazing
  • Recess mounted

Optical

  • Lumen output of 1400lm - 3700lm
  • CRI >90Ra
  • SDCM <3
  • 120° beam angle as standard

Electrical

  • 15W - 38W input power
  • Efficacy of up to 97lm/w
  • Voltage 24V DC

Durability

  • 50,000 hours @ 25°C
  • Operating temp. -20°C to 45°C
  • IP54
