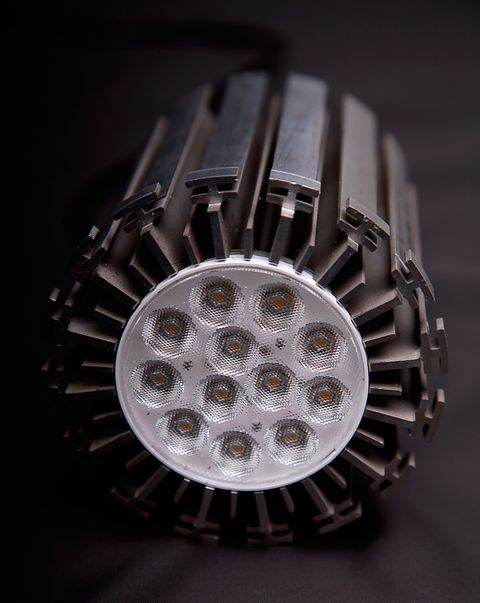

DAEDALUS

High output LED light engine

Features & Benefits

• High output light engine using CREE XML2 LED's with T4 Flux or above
• Manufactured in high grade aluminium to ensure best heat removal properties
• Supplied with electronic driver
• Expected lifetime of 100,000 hours
• CRI 84 (90 on request)
• Dimming available via DALI, DMX or DSI
• Ideal replacement for 150w CDM-T

Applications

• Retail
• Exhibitions
• Commercial areas

General

  • Ø110.5mm x 140mm
  • High grade aluminium
  • Mounting options include suspended, surface or retro fitted into existing housing
  • 0.72kg

Optical

  • Output of up to 9000lm
  • 4000k CCT standard
  • CRI >84Ra (90 optional)
  • Beam angle of 28° or 40°

Electrical

  • Up to 90w input power
  • Efficacy of 89lm/w
  • Forward voltage of 42v

Durability

  • Lifespan of 100,000 hours
  • Protection IP20
  • Operating temp. -20°C to 35°C
