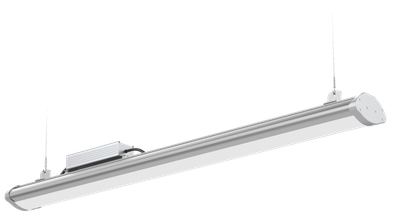

LINEAR HIGH BAY SLIM

Attractive and functional LED lighting solution for industrial applications and showrooms

Features & Benefits

• Tough IK10 aluminium complete with polycarbonate diffuser
• Choice of 3 lengths which include 605mm, 905mm or 1205mm
• 120° beam angle
• Lumen output ranging from 13000lm - 30000lm
• Up to 150 lm/w
• 1-10V or DALI dimmable
• Optional sensors include motion or daylight

Applications

• Warehouse and industrial applications
• Showrooms
• Petrol stations

General

  • Lengths of 605mm, 905mm or 1205mm
  • Aluminium profile body with polycarbonate lens
  • Suspended or surface mounted
  • Weight 4.4kg (605mm), 5.5kg (905mm), 6.6kg (1205mm)

Optical

  • Lumens 13000lm - 30000lm
  • CCT of 4000k or 5000k
  • CRI >70Ra
  • 120° beam angle

Electrical

  • Wattage 100W - 300W
  • Efficacy up to 150lm/w
  • Voltage 100-277V
  • Frequency 50/60Hz
  • <65A Inrush current
  • THD <20%
  • Class I protection

Durability

  • Operating temp. -20°C to 70°C
  • IP65
  • IK10
