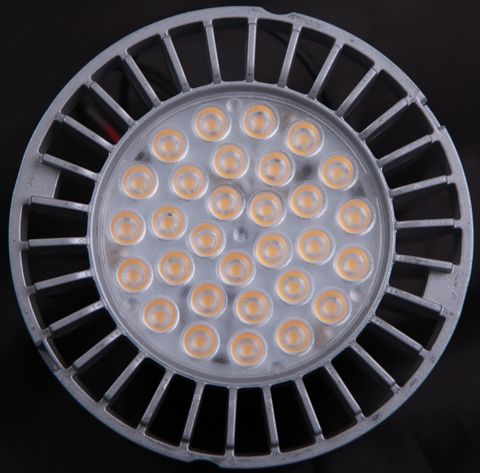

MEDUSA

Low voltage LED light engine with integrated optics and heat sink

Features & Benefits

• Fits into most existing traditional AR111 luminaires
• Available with 24° or 40° beam angle
• Ra92 available
• Luminous efficacy up to 118lm/w
• CCT of 300k or 4000k
• Dimmable

Applications

• Spot and track luminaires
• Retail
• Shopping centres
• Exhibition halls
• Museums

General

  • 110mm diameter x 60mm depth
  • Grey, black or white finish as standard
  • Aluminium body with polycarbonate lens
  • Recess mounted
  • 0.29kg

Optical

  • Lumen output of 1500lm, 2400lm & 3600lm
  • 3000k & 4000k
  • Beam angle of 24° & 40°

Electrical

  • 17w, 22w & 32w input power
  • Maximum 30.8V
  • Up to 118lm/w
  • SDCM <4

Durability

  • Lifespan of 50,000 hours
  • Operating temp. -20°C to 40°C
