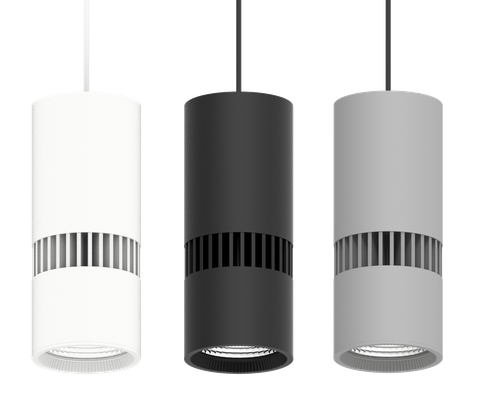

HELIOS II-S

Decorative LED pendant

Features & Benefits

• Efficacy of up to 129 lm/w
• High lumen output of up to 4200 lumens
• Choice of 4 beam angles
• 3 colour options of black, white or grey
• 3000k or 4000k
• Ra90+ optional
• 1-10V or DALI dimming control

Applications

• Retail
• Hospitality
• Offices

General

  • Size 135mm diamter x 239mm
  • Black, white or grey painted finish
  • Aluminium body with polycarbonate lens
  • Pendant mounting
  • Weight 2.1kg

Optical

  • Lumen output of 1100lm - 4000lm
  • CCT 3000k, 4000k
  • CRI >80Ra (90 optional)
  • SDCM <3
  • Beam angles of 15°, 30°, 45°, 60°
  • LOR >90%

Electrical

  • Wattage 10w - 33w
  • Efficacy of up to 129lm/w
  • Forward current 250mA - 1050mA
  • Voltage 220-240V

Durability

  • Lifespan 50,000hrs (L70, B50)
  • Operating temp. -20°C to 40°C
  • IP20
