SPARTAN

SPARTAN

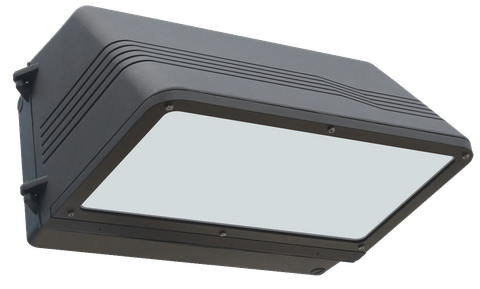

Integrated LED wall pack

Features & Benefits

• Efficient and reliable replacement for standard wall pack luminaires
• 3000k, 4000k & 5000k CCT
• Integrated aluminium housing acts as heat sink
• Photocell, 0-10v, DALI dimming control options are available
• In excess of 120lm/w
• Life 53,000 hours (L80)
• Output of up to 17,000 lumens

Applications

• Pathway and perimeter lighting

General

  • Size of 362.5mm x 235mm x 287mm
  • Bronze painted finish
  • Aluminium body with optical frosted glass
  • Wall and surface mounted

Optical

  • Lumen output 10,200lm, 13,000lm & 16,800lm
  • 3000k, 4000k & 5000k
  • >70Ra
  • Area beam distribution

Electrical

  • Input power of 85w, 115w & 140w
  • 120lm/w +
  • 120-277V

Durability

  • Lifetime of 53,000 hours (L80)
  • Operating Temp. -30°C to 40°C
  • IP65
  • IK09
