CHIMERA DARK LINEAR

CHIMERA DARK LINEAR

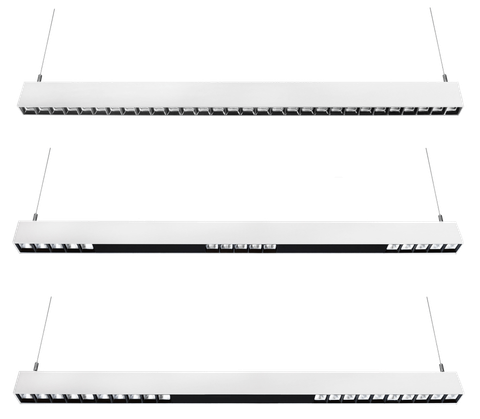

Suspended linear fixture with direct/indirect distribution

Features & Benefits

• Light efficiency of in excess of 100 lm/w
• Optimal glare control, UGR<10
• Uniform illumination, direct and indirect light
• Choice of 3 beam angles
• White, silver or black finish as standard
• Available as DALI, emergency variant and can be supplied with motion/daylight sensor

Applications

•    Offices
•    Schools
•    Healthcare

General

  • Lengths of 1150mm, 1530mm
  • White, silver or black powder coated finish
  • Extruded aluminium profile with louvre
  • Mounting via suspension cord or road, unit can also be track mounted

Optical

  • 3000lm to 5000lm (direct distribution)
  • 1500lm+3000lm to 2500lm+5000lm (indirect distribution)
  • CCT of 3000k, 4000k, 5000k, tunable white
  • CRI >80Ra, >CRI90Ra
  • UGR <10
  • SDCM <3

Electrical

  • Input power of 30W - 50W (direct),    45W - 75W (indirect)
  • Excess of 100lm/w
  • Voltage 220-240V
  • THD <15%

Durability

  • Lifetime of 60,000 hours (L90, Tc=55°C)
  • Operating temp. -35°C to 45°C
  • IP20
  • IK02
