ELEOS

ELEOS

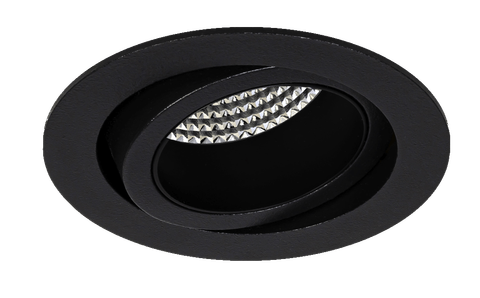

Subtle and adjustable LED downlight

Features & Benefits

• Architectural & inobtrusive LED downlight
• Option of fixed or tilt body
• Die-cast bezel finished in RAL 9016 white as standard
• Various choice of body and baffle colours
• Standard 40° reflector with optional 20°
• CCT of 2700k - 4000k, tunable white available 2700k - 6500k
• High Ra90 colour rendering
• Available as DALI, SwitchDIM, DSI, and EM conversion

Applications

• Receptions
• Museums
• Art galleries

General

  • Size Ø76mm x 100mm depth, Ø67mm cut-out
  • Die-cast bezel with glass glazing
  • RAL9016 brilliant white as standard, various colour options are available
  • Recess mounted
  • Weights of 0.3kg

Optical

  • Lumen output 525lm - 1150lm
  • CCT 2700k - 4000k, tunable white 2700k - 6500k
  • CRI >80Ra, >90Ra
  • UGR of >12.7
  • Beam angles of 40° or 20°

Electrical

  • Wattage of 6W - 15.5W
  • Efficacy of up to 67.1lm/w
  • Voltage 220-240V
  • Mains frequency 50-60Hz

Durability

  • Lifespan >50000 hours (L70/F10)
  • Operating temp. -25°C to 35°C
  • IP Protection IP44 (front) IP20 (rear), optional IP54 ribbed glass
