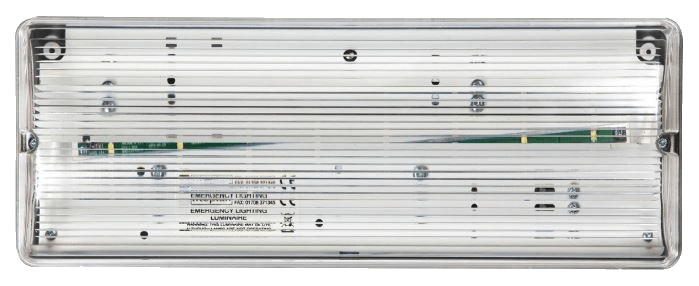

EMG IP65 BULKHEAD

EMERGENCY IP65 BULKHEAD

Integral emergency unit

Features & Benefits

• IP65 ingress protection
• 310 delivered lumens in mains operation
• 288 delivered lumens in emergency operation
• Hinged gear tray for simple installation
• Choice of non-maintained or maintained DALI self-test
• 4000k CCT

Applications

• High ceilings
• External perimeters and staircases

General

  • Size 370mm x 140mm x 89mm
  • Polycarbonate body
  • Surface or recess mounted
  • Weight 1.69kg

Optical

  • Lumen output 310lm (mains) & 288lm (emergency)
  • CCT 4000k
  • Beam angle 125° x 117°

Electrical

  • Wattage 3.5w
  • Input voltage 230-240V AC 50/60 Hz
  • Battery discharge current 400mA
  • Discharge voltage limit 7.5V
  • Battery pack 9.6V 1.5Ah
  • Charge current 0-150mA Float
  • Recharge period 24 hours

Durability

  • Ambient temp. 0°C to +50°C
  • IP65
