ATLAS

ATLAS

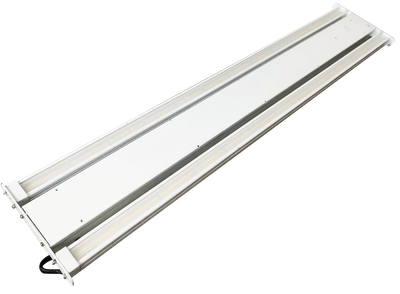

LED High bay

Features & Benefits

• Efficacy of up to 130lm/w
• Choice of asymmetrical or wide 120° beam
• Adjustable modules -30° to +30°
• DALI or 1-10V
• Optional motion sensor
• High lumen output of up to 52,000lm
• Replacement for metal halide high-bays up to 1000w
• Surface or suspended mounted

Applications

• Industrial
• Commercial
• Manufacturing
• Storage

General

  • 995mm length x 207mm width
  • Aluminium body with polycarbonate diffuser

Optical

  • Lumens 14000lm - 39200lm
  • CCT 2700k - 7000k
  • CRI >80Ra
  • Asymmetric and wide 120° beam angle

Electrical

  • Wattage 100w - 280w
  • Efficacy up to 140lm/w
  • Input voltage 90-305V
  • Power factor >0.9

Durability

  • Lifespan 50,000 hours
  • Operating Temp. -40°C ~ 50°C
  • IP20
