GRIFFIN

GRIFFIN

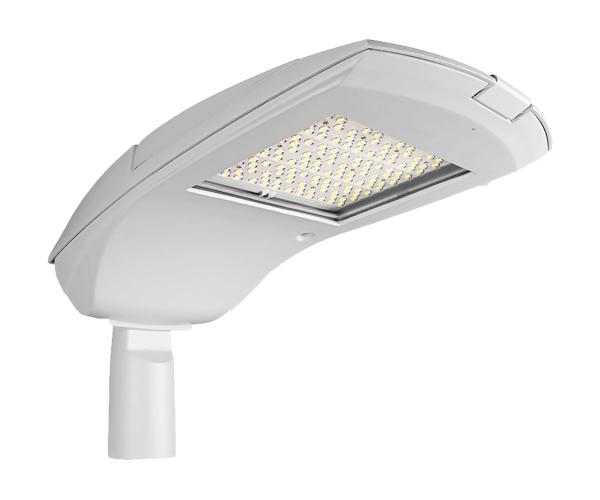

Exterior roadway and area LED street light

Features & Benefits

• High output efficiency up to 135lm/w
• High performance optics and a full range of light distributions
• Tool free entry
• Replaceable driver unit and control gear
• DALI control available
• Photo sensor control with 3P, 5P, 7P NEMA socket & twist-lock receptacle
• Available with microwave or PIR motion sensor and tri-level & 3-step dimming
• Easy maintenance on-site
• Future-proof

Applications

• Highways and major roads
• Residential roads
• Pedestrian areas

General

  • RAL 9007 grey aluminium as standard
  • Die-cast aluminium body with polycarbonae lens
  • Post-top, side-entry
  • Weights 5kg - 12kg

Optical

  • Lumen output 5600lm - 26000lm
  • CCT of 3000k, 4000k & 5000k & 5700k
  • CRI >70Ra
  • UGR <21
  • SDCM 3
  • 3 standard roadway beam angles

Electrical

  • Input power of 42W - 195W
  • Efficacy of up to 135lm/w
  • Input voltage 100-277Vac 50/60Hz
  • THD <10%
  • PF >0.92

Durability

  • Lifespan >50,000hrs L90/B10 ta=25°C
  • Operating temp. -40°C to 45°C
  • IP66
  • IK09
