CHIMERA CONSTANT LINEAR DIRECT/INDIRECT

CHIMERA CONSTANT LINEAR DIRECT/INDIRECT

High performance suspended LED profile with up/down light distribution

Features & Benefits

• Single or continuous direct/indirect linear profile system
• Finished in RAL9006 grey as standard
• Choice of 4 standard lengths
• Output ratio of 75% (down) 25% (up)
• Optional low glare prismatic lens for LG7 compliance
• Up to 30 lm/w
• Available as emergency variant
• DALI, SwitchDim or DSI control

Applications

• Offices
• Reception Areas
• Hospitality
• Schools

General

  • Lengths of 852mm, 1271mm, 1550mm & 2528mm

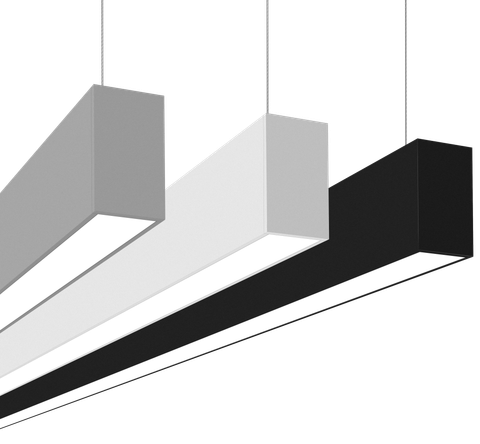

  • Grey, white or black finish
  • Extruded aluminium profile with opal diffuser
  • Suspended mounted
  • Weight of 3.5kg - 12.3kg

Optical

  • Total lumen outputs of 1553lm - 11435lm
  • 3 output variants, low, standard & high
  • CCT of 3000k & 4000k
  • CRI >80Ra
  • UGR 17.3 minimum
  • SDCM <3
  • Beam angle of 110°

Electrical

  • Input power of 16W - 109W
  • Up to 113lm/w
  • Voltage 220-240V
  • PF 0.84 - 0.98

Durability

  • Lifetime of >72,000 hours (L80/F10)
  • Operating temp. -25°C to 35°C
  • IP20
