ORCUS

ORCUS

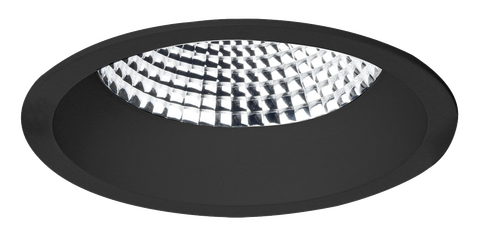

Recessed LED downlight

Features & Benefits

• Facet anodised aluminium reflector
• 2700k to 5700k
• Available with a black, grey or white bezel
• CRI >80 or 90
• DALI or 1-10V control
• IP40 rated

Applications

• WC Areas
• Changing Rooms
• Showers
• Retail
• Corridors
• Receptions

General

  • 125mm diamter x 11mm depth
  • Cut out of 115mm diameter
  • Black, grey and white bezel finish
  • Aluminium bezel with toughened glass glazing
  • Recess mounted
  • 0.5kg

Optical

  • Lumen output 1000lm to 2350lm
  • CCT of 3000k or 4000k
  • CRI >80Ra (90 optional)
  • Beam angle of 50°

Electrical

  • Input power of 9.5w or 18.5w
  • Up to 127lm/w
  • 220V - 240V
  • SDCM 3

Durability

  • Lifespan of 50,000 hours (L80/B20)
  • IP40
  • Maximum ambient temp. 35°C
