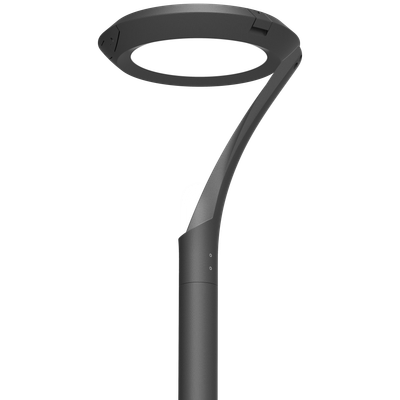

ORPHEUS

ORPHEUS

Exterior area light

Features & Benefits

• 3 head types offering different lumen packages
• Architectural styled appearance
• Up to 133lm/w
• Various light distributions
• Dynamic thermal regulation protects LED’s and electronics under extreme temperatures
• 0-10V, DALI control gear, timer control, Zigbee control for Smart City management
• Photo sensor control 3P 5P 7P NEMA Socket & Twist-lock receptacle

Applications

• Amenity areas
• Residential streets
• Parking garages

General

  • RAL9007 light grey, RAL9005 black, RAL8019 dark bronze
  • Powder coated
  • Post-top, side-entry

Optical

  • Lumen output 2496lm to 9700lm
  • CCT of 2700-3000k, 3700k - 4000k, 4700-5000k & 5400-5700k
  • CRI >70Ra (80Ra optional)
  • UGR <21
  • SDCM 3
  • Choice of various roadway & area distributions

Electrical

  • Input power of 25w - 80w
  • Efficacy of up to 139lm/w
  • Input voltage 100-277Vac
  • THD <10%
  • PF >0.92

Durability

  • Lifespan >91% 60,000hrs @ 25°C
  • Operating temp. -40°C to 45°C
  • IP66
  • IK09
