MINATOR

MINATOR

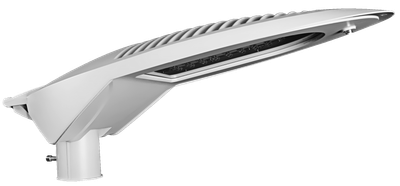

Exterior street light

Features & Benefits

• High luminous efficiency of up to 121lm/w
• Strong heat dissipation to ensure long lifespan
• Ultra-durable powder coated finish providing excellent resistance to corrosion, ultraviolet degradation and abrasion
• Easy and fast maintenance
• Multiple light distribution curves
• Dimming and photocell control with twist-lock socket

Applications

• Highways and major roads
• Residential roads
• Pedestrian areas

General

  • RAL 9007 grey aluminium as standard
  • Die-cast aluminium body with polycarbonae lens
  • Post-top, side-entry
  • Weights 3kg - 11kg

Optical

  • Lumen output 3900lm - 22400lm
  • CCT of 3000k, 4000k & 5000k & 5700k
  • CRI >70Ra
  • UGR <21
  • SDCM 3
  • 3 standard roadway beam angles

Electrical

  • Input power of 36w - 195w
  • Efficacy of up to 121lm/w
  • Input voltage 220V-240V
  • THD <10%

Durability

  • Lifespan >60,000hrs L90/ta=25°C
  • Operating temp. -40°C to 45°C
  • IP66
