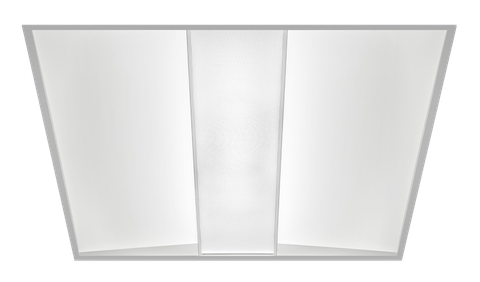

CHIMERA 600x600

CHIMERA

Recessed modular 600x600

Features & Benefits

• Direct/indirect 600x600 LED modular
• Micro prismatic central diffuser
• Life up to >70,000 hours L70/B10
• Low glare for LG7 compliance
• Up to 5100 lumens
• Tunable white version
• Wireless, dimming and emergency options

Applications

• Offices
• Reception areas
• Retail spaces

General

  • Size 589mm x 593mm x 100mm
  • Powder coated white finish
  • Aluminium frame with polycarbonate diffuser
  • Weight 3.9kg
  • Recess, surface or suspended mounted

Optical

  • Lumen output 3025lm - 5100lm
  • CCT 3000k & 4000k
  • CRI >Ra80 (90 optional)
  • UGR of less than 19
  • LOR >68%

Electrical

  • Input power of 32w, 38w, 47w & 52w
  • Up to 112lm/w
  • Forward current 250mA - 1050mA
  • Voltage 220-240V

Durability

  • Lifetime of 70,000 hours (L70/B10)
  • Operating temp. -25°C to 35°C
  • IP20 (rear) IP44 (front)
