ORION

ORION

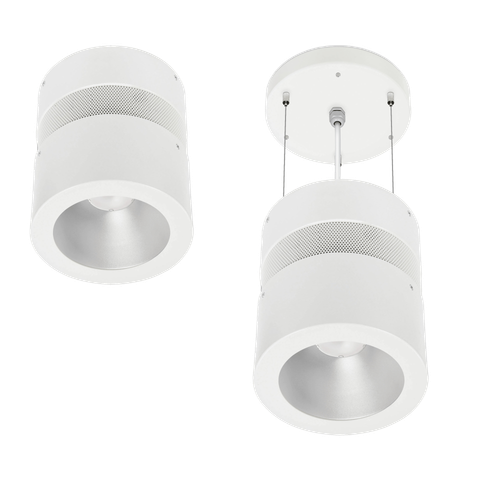

Surface/pendant LED fixture

Features & Benefits

• Manufactured in light weight spun aluminium complete with satin etched reflector
• Surface and pendant mounting options
• Lumen output of up to 3800 lumens
• 3000k and 4000k CCT available as standard
• Choice of white, grey or black finish with the option of additional colour combinations
• Integral emergency option
• Touch dimming/DALI available
• Additional accessories include clear glass glazing, opal polycarbonate and vertical halo option

Applications

• Retail
• Offices
• Reception Areas

General

  • Size 200mm diameter x 238mm depth
  • Powder coated white, grey or black as standard
  • Aluminium body with satin etched reflector
  • Surface or pendant mounted
  • Weight 3kg

Optical

  • Lumen output 1075lm - 6500lm
  • CCT of 3000k or 4000k
  • CRI >80Ra
  • LOR 87%
  • UGR 14.7 - 21.2
  • Beam angle of 60° standard, optional 40° and 50°
  • SDCM 3

Electrical

  • Input power of 15W - 63W
  • Up to 103lm/w
  • Voltage 220V - 240V
  • Mains frequency 50-60Hz
  • PF 0.9

Durability

  • Lifespan of 60,000 hours (L70/B10)
  • IP20
  • Operating temp. -25°C to 35°C
