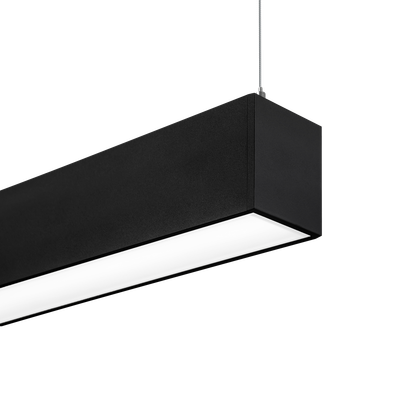

CHIMERA CONSTANT LINEAR

CHIMERA CONSTANT LINEAR

High performance suspended/surface LED profile

Features & Benefits

• Direct, extruded linear profile
• Suitable for surface or suspended mounting
• Finished in RAL9006 as standard
• Choice of 4 standard lengths
• Individual or continuous luminaire
• Delivering approx. 2200lm per metre as standard
• Supplied with low glare prismatic lens for LG7 compliance
• Up to 120 lm/w
• Available as emergency variant
• DALI, SwitchDim or DSI control

Applications

• Offices
• Reception Areas
• Hospitality
• Schools

Example Installations

CHIMERA CONSTANT LINEAR fittings are used in the following installations:

General

  • Lengths of 852mm, 1271mm, 1550mm or 2528mm, 62mm wide and 72mm deep
  • Finished grey, white or black
  • Extruded aluminium with polycarbonate diffuser
  • Surface or suspended mounted

Optical

  • Lumen output of 1900lm - 5650lm
  • CCT 3000k or 4000k
  • CRI >80Ra
  • UGR <23
  • SDCM 3
  • Beam angle of 110°

Electrical

  • Max wattage 21W - 60W
  • Efficacy up to 120lm/w
  • Voltage 220-240V 50/60Hz
  • PF 0.84 - 0.96

Durability

  • Lifespan >60,000 (L70/F10)
  • Operating Temp. -25°C to 35°C
  • IP40
