GAIA

GAIA

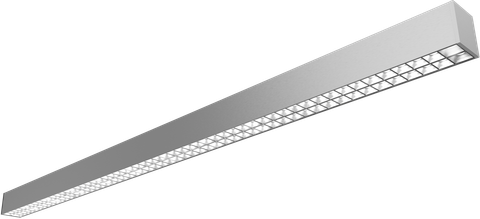

Linear luminaire with excellent glare control

Features & Benefits

•    High light efficiency of more than 130lm/w
•    Optimal glare control, UGR<10
•    Seamless connection and no light leakage
•    Uniform illumination, direct & indirect light
•    Standalone type and continuous row optional
•    Ideal replacement for fluorescent grille lights
•    Compliant with EN12464-1 standard
•    No flickering, visual comfort

Applications

•    Office
•    Educational
•    Healthcare
•    Public

General

  • Section lengths of 1200mm, 1500mm & 3000mm
  • White, silver or black finish
  • Powder coated with anodised finish
  • Extruded aluminium profile with PMMA cover
  • Suspended mounting

Optical

  • 3,200lm to 10,000lm (direct distribution)
  • 1600lm+3200lm to 4000lm+8000lm (indirect distribution)
  • CCT of 3000k, 4000k & 5000k
  • CRI >80Ra (90 optional)
  • UGR <16
  • SDCM <3
  • Beam angles of 18°, 30° or 45°

Electrical

  • Input power of 27W - 83W (direct),    40W - 100W (indirect)
  • Up to 130lm/w
  • Voltage 200-240V
  • THD <15%
  • PF >0.9

Durability

  • Lifetime of 60,000 hours (L70, Tc=25°C)
  • Operating temp. -35°C to 45°C
  • IP20
  • IK02
