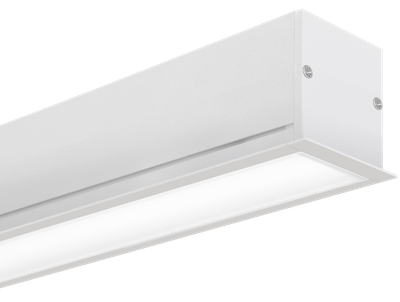

CHIMERA CONSTANT LINEAR RECESSED

CHIMERA CONSTANT LINEAR RECESSED

High performance recessed LED profile

Features & Benefits

• Recessed, extruded linear profile finished in RAL9006 as standard
• Choice of 3 standard lengths
• Individual or continuous luminaire
• TP(a) opal lens for general areas as standard
• Optional low glare prismatic lens for LG7 compliance
• Up to 120 lm/w
• Available as emergency variant
• DALI, SwitchDim or DSI control

Applications

• Offices
• Reception Areas
• Hospitality

Example Installations

CHIMERA CONSTANT LINEAR fittings are used in the following installations:

General

  • Lengths of 850mm, 1200mm or 1500mm x 70mm bezel x 120mm depth
  • Grey trim as standard
  • Extruded aluminium with opal diffuser
  • Recess mounted
  • Weight 2.5kg - 4.3kg

Optical

  • Lumen output of 1900lm - 3450lm
  • CCT 3000k or 4000k
  • CRI >80Ra
  • UGR 19.7 minimum
  • SDCM 3
  • Beam angle of 110°

Electrical

  • Max wattage 21W - 35W
  • Efficacy up to 120lm/w
  • Voltage 220-240V 50/60Hz
  • PF 0.84 - 0.96

Durability

  • Lifespan >60,000 (L70/F10)
  • Operating Temp. -25°C to 35°C
  • IP40
