SLICA

SLICA

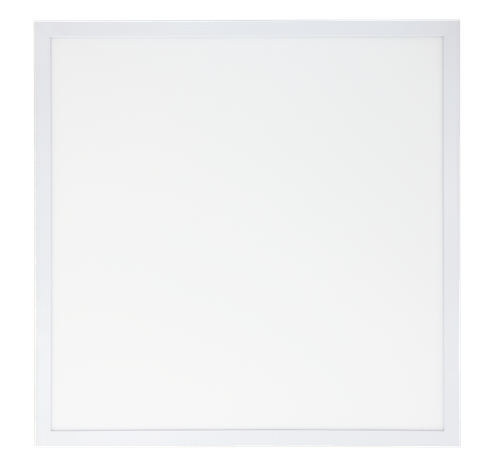

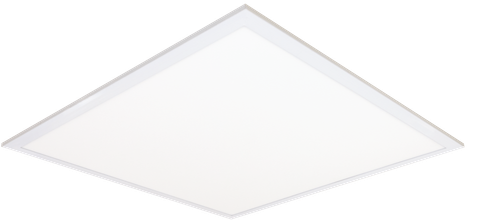

High performance LED ceiling panel

Features & Benefits

• Low profile design
• Up to 121lm/w
• Lumen output of up to 6000lm
• Available with Triac or DALI dimming driver
• Optional surface box or frame
• CRI >80
• Available in 3 sizes, 600x600mm, 1200x300mm and 1200x600mm
• Emergency version kit available
• IP65 version (600x600 only)

Applications

• Offices
• Hospitals
• Schools
• Kitchens
• WC Areas

Example Installations

SLICA fittings are used in the following installations:

General

  • Sizes include 595mm x 595mm x 10mm, 1195mm x 296mm x 10mm & 1195mm x 595mm x 10mm
  • Extruded aluminium, steel back, LGP sheet and polycarbonate diffuser
  • Recess or surface mounted

Optical

  • Lumen output of up to 6000lm
  • 4000k
  • >80Ra
  • Beam angle of 120°

Electrical

  • Input power of 30W OR 50W
  • Up to 121lm/w
  • Voltage 220-240V
  • Frequency 50/60Hz
  • PF 0.9

Durability

  • Lifetime of 50,000 hours
  • Operating temp. -20°C to 65°C
  • IP20 or IP65
