SLICA [OLD]

SLICA

High performance LED panel

Features & Benefits

• Up to 135lm/w
• 3000k, 4000k & 5000k CCT
• UGR <19
• Lumen output of up to 4860lm
• Optional surface box
• CRI>80

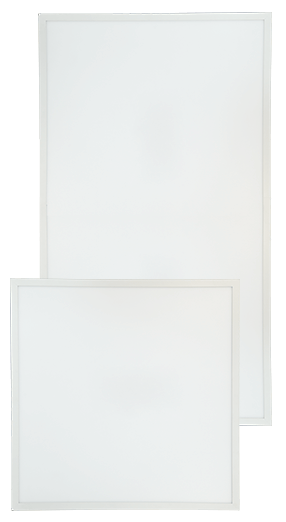

• Available in 2 sizes, 600x600mm and 1200x300mm as standard

Applications

• Offices
• Hospitals
• Schools
• Kitchens
• WC Areas

Example Installations

SLICA fittings are used in the following installations:

General

  • 600mm x 600mm x 11mm
  • 1200mm x 300mm x 11mm
  • White RAL9016 or aluminium RAL9003 finish
  • Aluminium body with high quality acrylic and polycarbonate diffuser
  • Recess, surface or suspended mounted

Optical

  • Lumen output of up to 4680lm (600x600 & 1200x300)
  • 3000k, 4000k & 5000k
  • >80Ra
  • UGR of less than 19
  • Beam angle of 90°
  • SDCM 3

Electrical

  • Input power of 25W, 35W & 36W
  • Up to 135lm/w
  • 220-240V

Durability

  • Lifetime of 50,000 hours (L70/B20)
  • Operating temp. 0°C to 40°C
  • IP20
